Rubber Belt/Chain Belt/ Roller Conveyor

Quick Details
Product Code:
OEM
OEM:
Available
Sample:
Available
Port:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
Payment:
PayPal,VISA,MasterCard,Western Union,T/T,Other
Place of Origin:
China
Shipping:
Support Express · Sea freight · Land freight · Air freight
Supply Ability:
500 unit per week
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

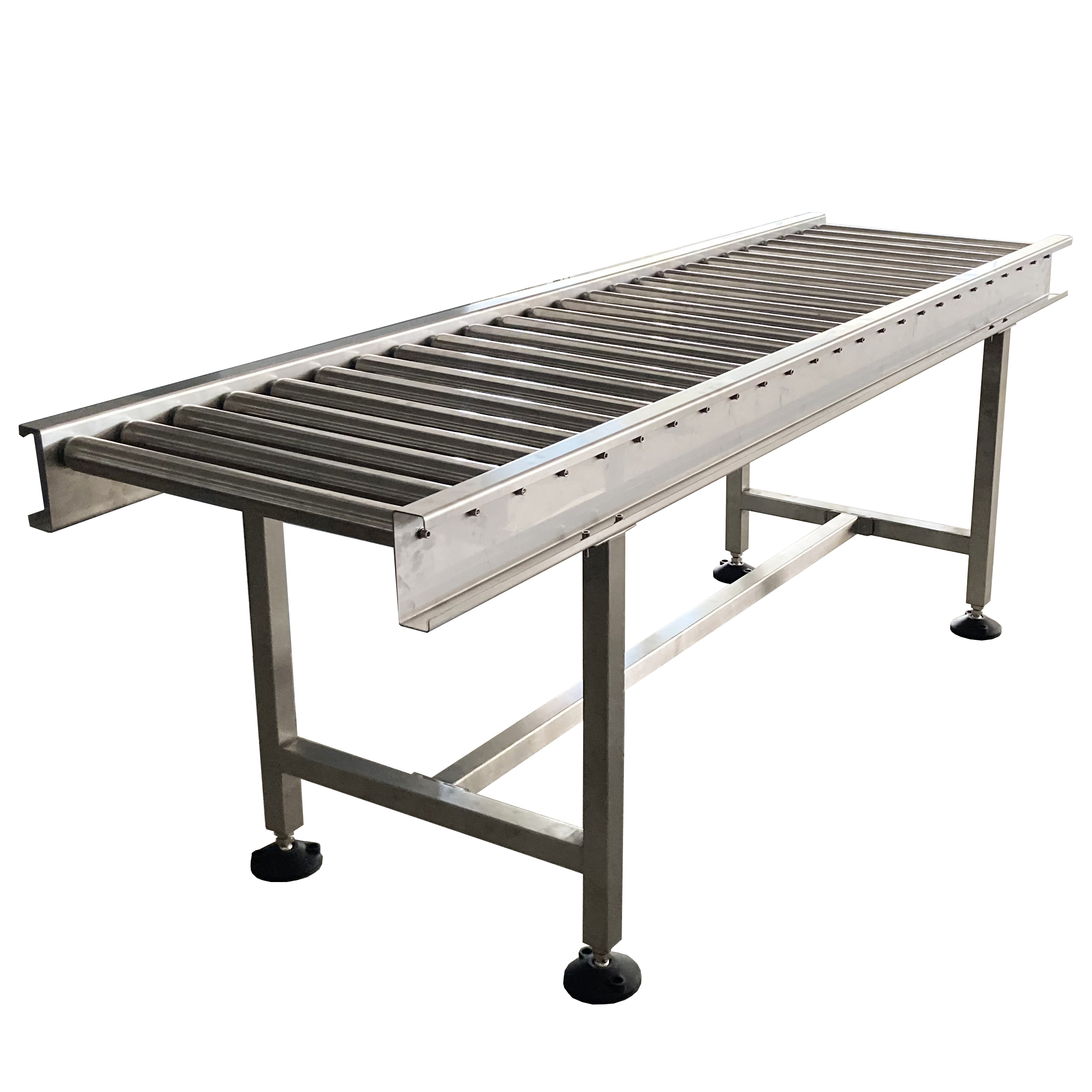

ROLLER CONVEYOR
CHAIN CONVEYOR

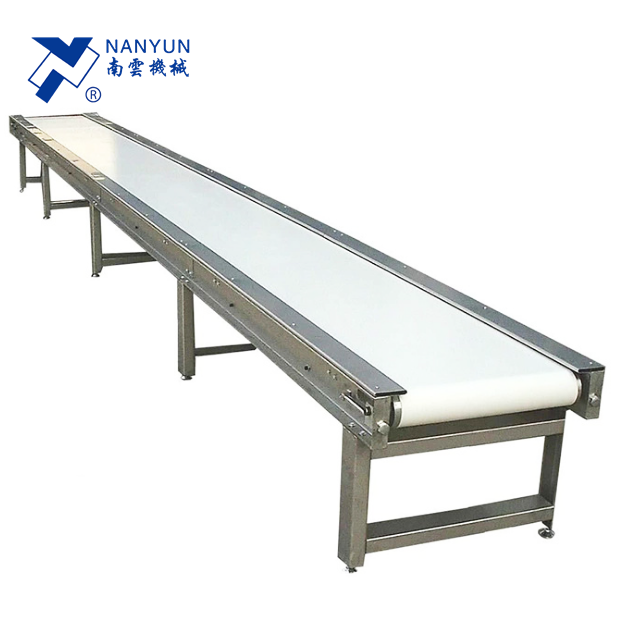

BELT CONVEYOR
A conveyor system is a fast and efficient mechanical handling apparatus for automatically transporting loads and materials within an area. This system minimizes human error, lowers workplace risks and reduces labor costs among other benefits. They are useful in helping to move bulky or heavy items from one point to another. A conveyor system may use a belt, wheels, rollers, or a chain to transport objects.
There are many types of conveyor systems, including:
* Belt
* Roller
* Slat/apron
* Ball transfer
* Overhead
* Pneumatic
* Bucket
* Chute
* Magnetic
* Vertical
* Wheel
* Walking beam
* Vibrating
* Screw/auger
* Chain



Product Paramenters



Roller Conveyor
Model
OEM
Roller diameter
76 or 89mm
Roller material
galvanized steel
Max Loading
10-1000kg
Turntable diameter
2000mm
Table height
500mm adjustable (also can be customized)
Frame material
U shape steel/carbon steel
Voltage
220V   single phase
Motor power
0.75-1.5KW 50HZ/60HZ
Conveyor length
As your requirements or depend on your pallet size
Conveyor speed
10-15m/min
Control system
As Required
Conveyor wide
Customeried
Drive type
Motor driven



Chain Conveyor
Model
OEM
Drive type
Chain
Width of conveyor
belt width+ 100mm (also can be customized)
Length of conveyor
belt length+ 1000mm (also can be customized)
Height of conveyor
350mm-950mm (also can be customized)
Power of Motor
0.75kw
Table height
500mm adjustable (also can be customized)
Conveyor speed
5-15m/min



Belt Conveyor
Model
OEM
Power
60-240W (optional)
Belt width
100-700mm ( also can be customized)
Belt thickness
2mm
Transmission speed
10-30 meters/min
Size
1500*250*750mm ( also can be customized)
Pearing capacity
5-20 kg
Material
Stainless Steel
Power consumption
< 60-240 W
Electricity demand
AC 110V or 220V,  50Hz/60Hz
