JPT-D continuous ink jet coder printer machine

Quick Details

Product Code：

JPT-3000D/JPT-3000DE/JPT-3000D60/JPT-3000DE60

OEM：

Refuse

Sample:

Refuse

Port:

Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports

Payment:

PayPal,VISA,MasterCard,Western Union,T/T,Other

Place of Origin：

Japan

Shipping：

Support Express · Sea freight · Land freight · Air freight

Supply Ability：

100 unit per week

Quick Details

Shipping fee

Inquiry Basket

Contact Supplier

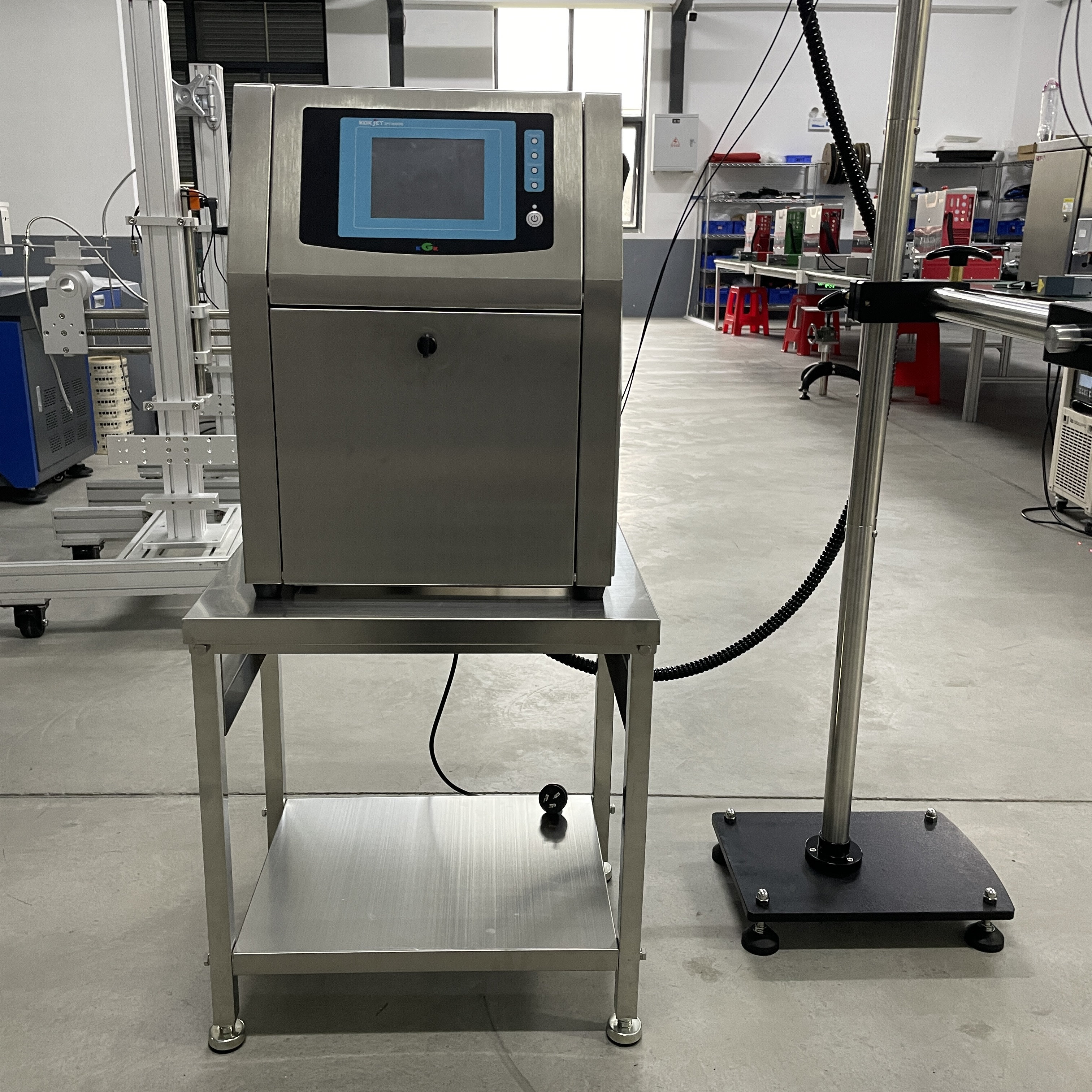

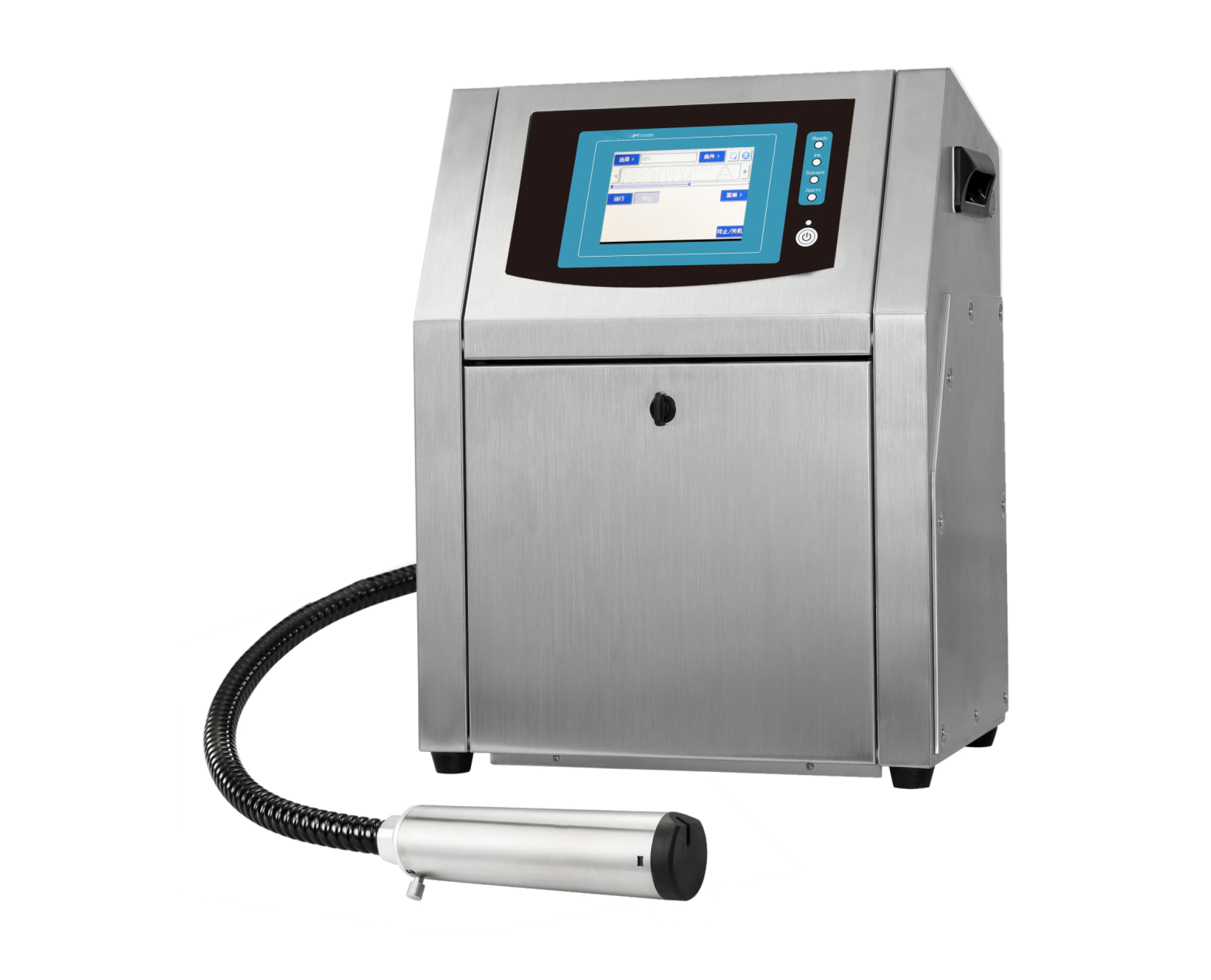

JPT3000D Continuous Inkjet Printer

※Applications:

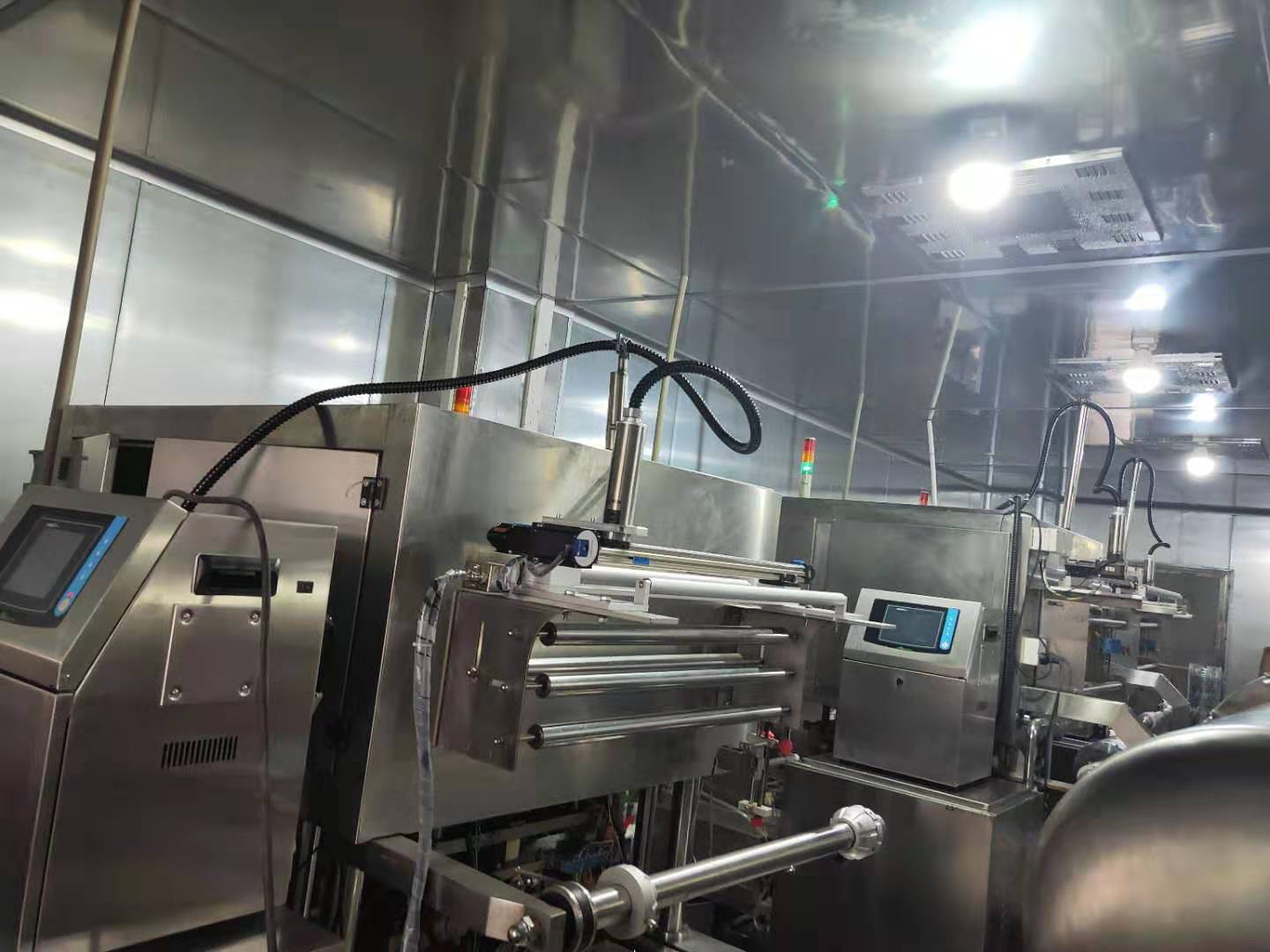

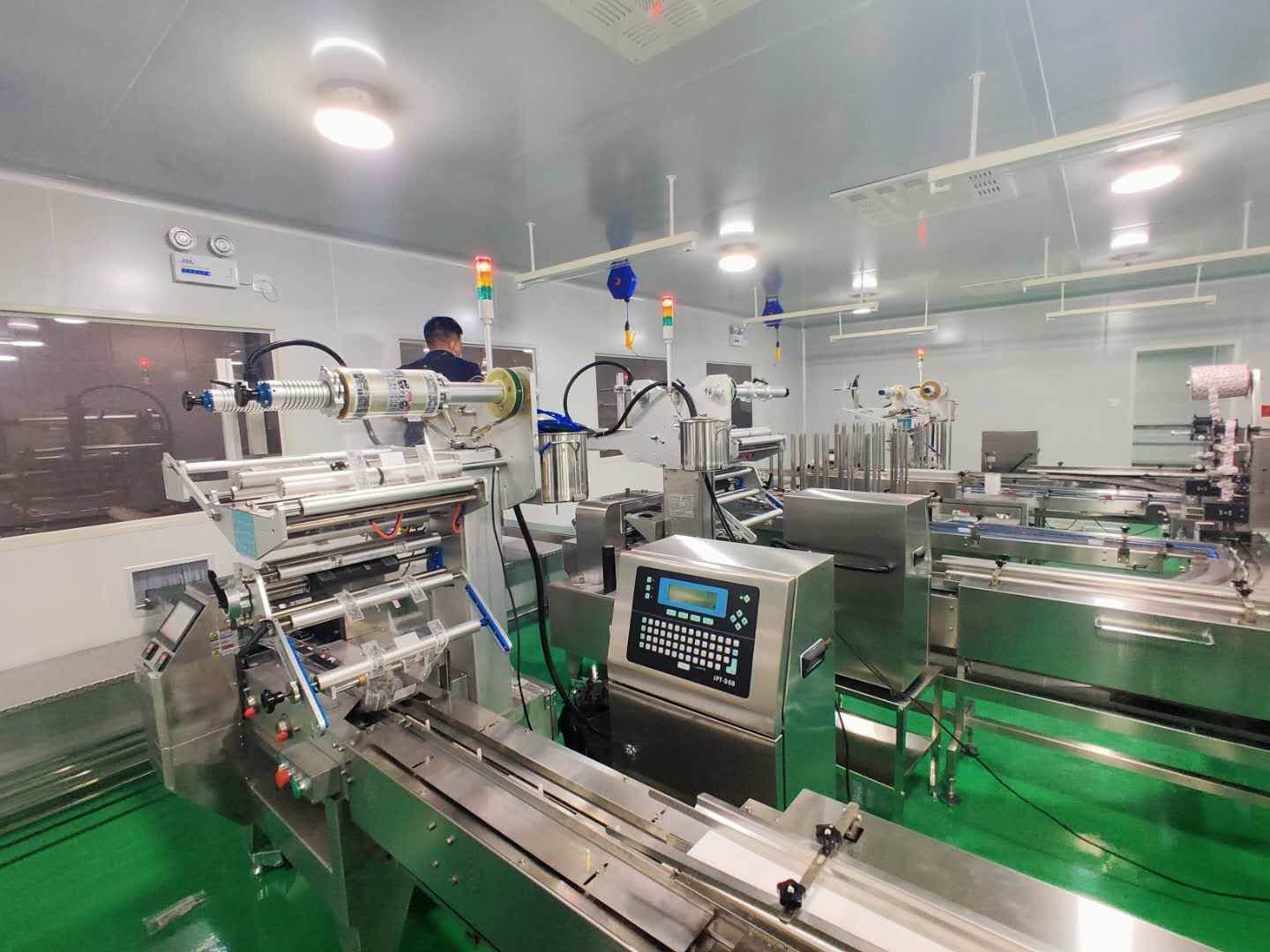

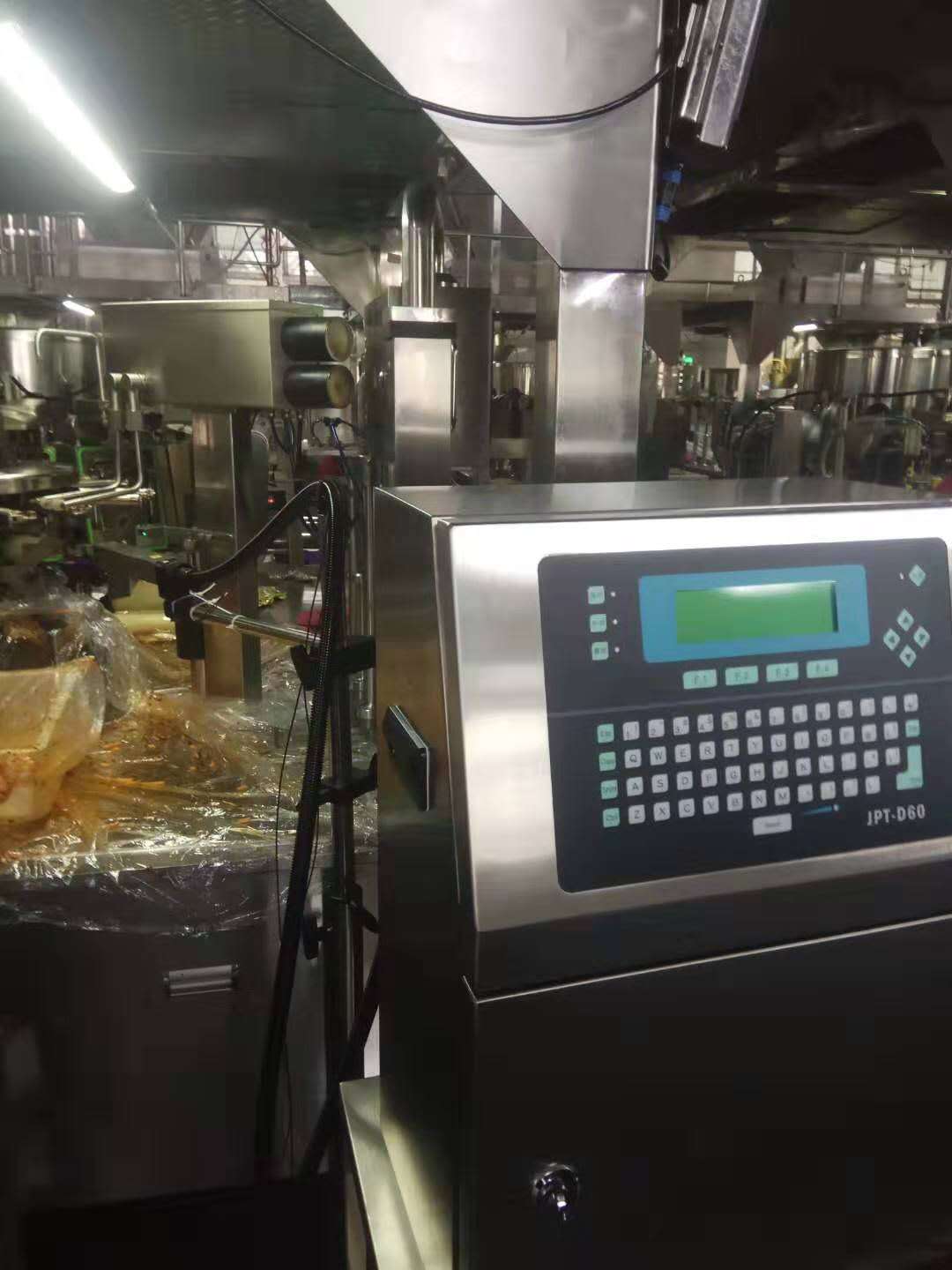

Our industrial ink jet printer designed to provide superior quality coding at various production environments on wide range of substrates & applications. Flexible code design, including the ability to mark serial numbers, batch codes, expiry dates, barcodes and logo on various uneven and flexible surfaces of substrates.

※Automatic Interval Setting:
Automatic start-up and shut down function can be programmed. It is designed to help circulating the ink during non-operation. This reduces the risk of nozzle clogging due to internal ink dry problem. Start-up and shut down interval can be set arbitrarily via timer.

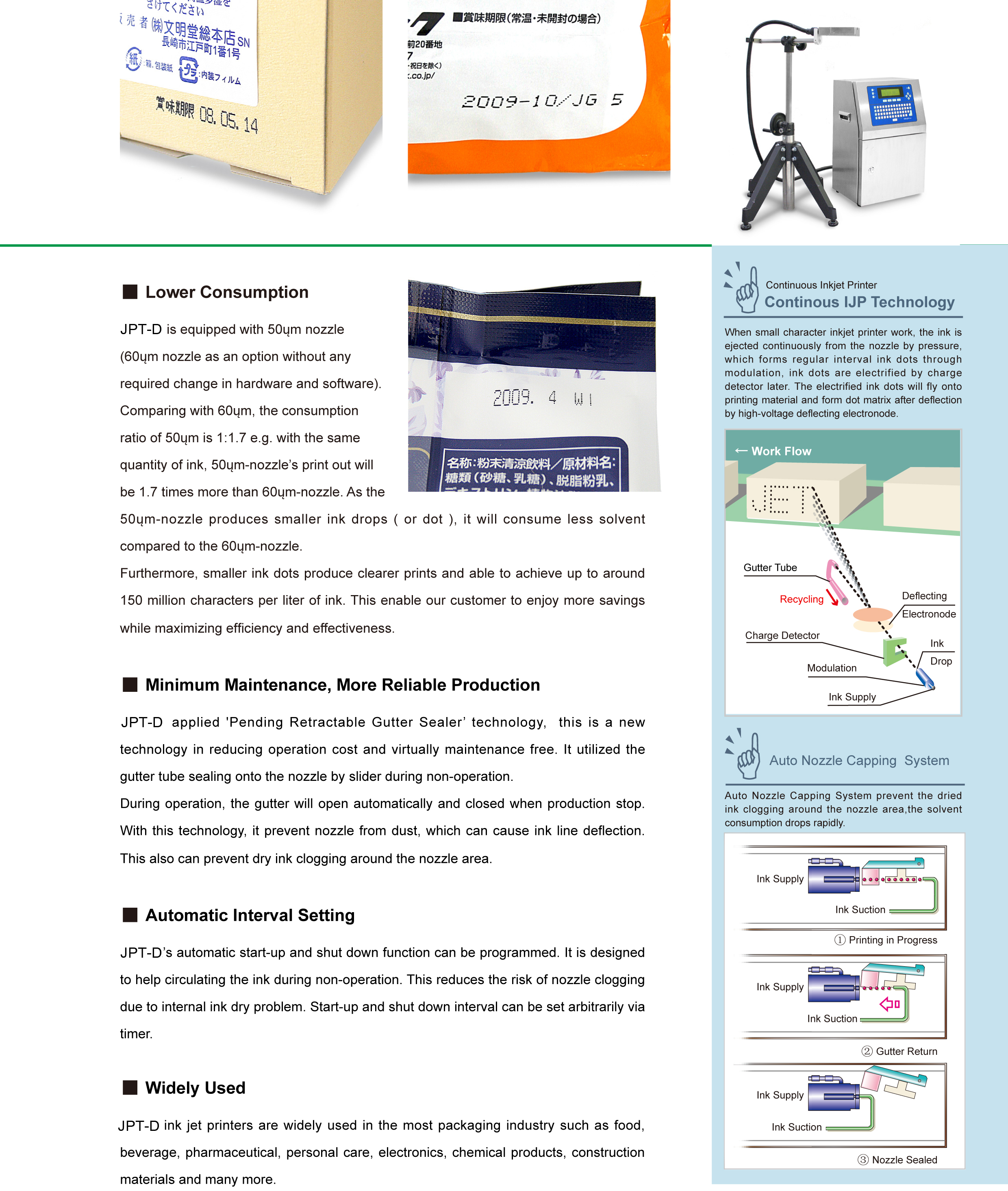

※Minimum Maintenance, More Reliable Production:

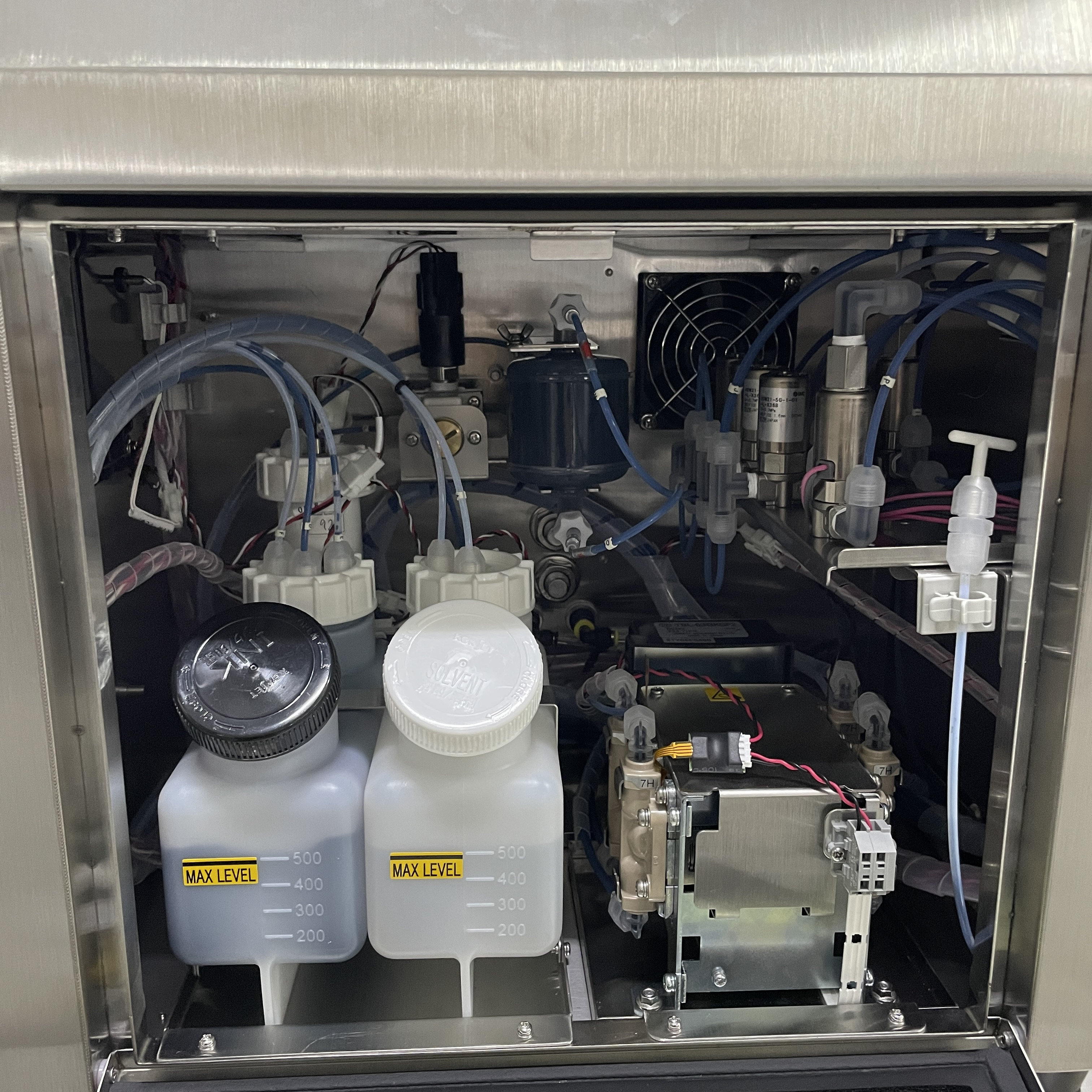

Applied 'Pending Retractable Gutter Sealer’ technology, this is a new technology in reducing operation cost and virtually maintenance free. It utilized the gutter tube sealing onto the nozzle by slider during non-operation. During operation, the gutter will open automatically and closed when production stop. With this technology, it prevent nozzle from dust, which can cause ink line deflection. This also can prevent dry ink clogging around the nozzle area.

Print mode	Continuous (Charge control system)
Character height	1-10mm
Print speed	Max.1780 characters/second
Character type	Alphabet (upper/lower case),figures, symbols, Katakana and Hiragana, Chinese characters (JIS 1st and 2nd standard), user characters and simplified Chinese characters(GB2312)
Number of printing lines and number of dots (Vertical×horizontal)	【1 to 4 lines】：5×5；【1 to 3 lines】：7×8，7×5；【1 to 2 lines】：12×10，10×8，9×9，9×7；【1 line】：24×24，24×18，16×16，16×12
Font	Gothic, Mincho, SimSun
Number of messages to register	Maxinum 999 messages

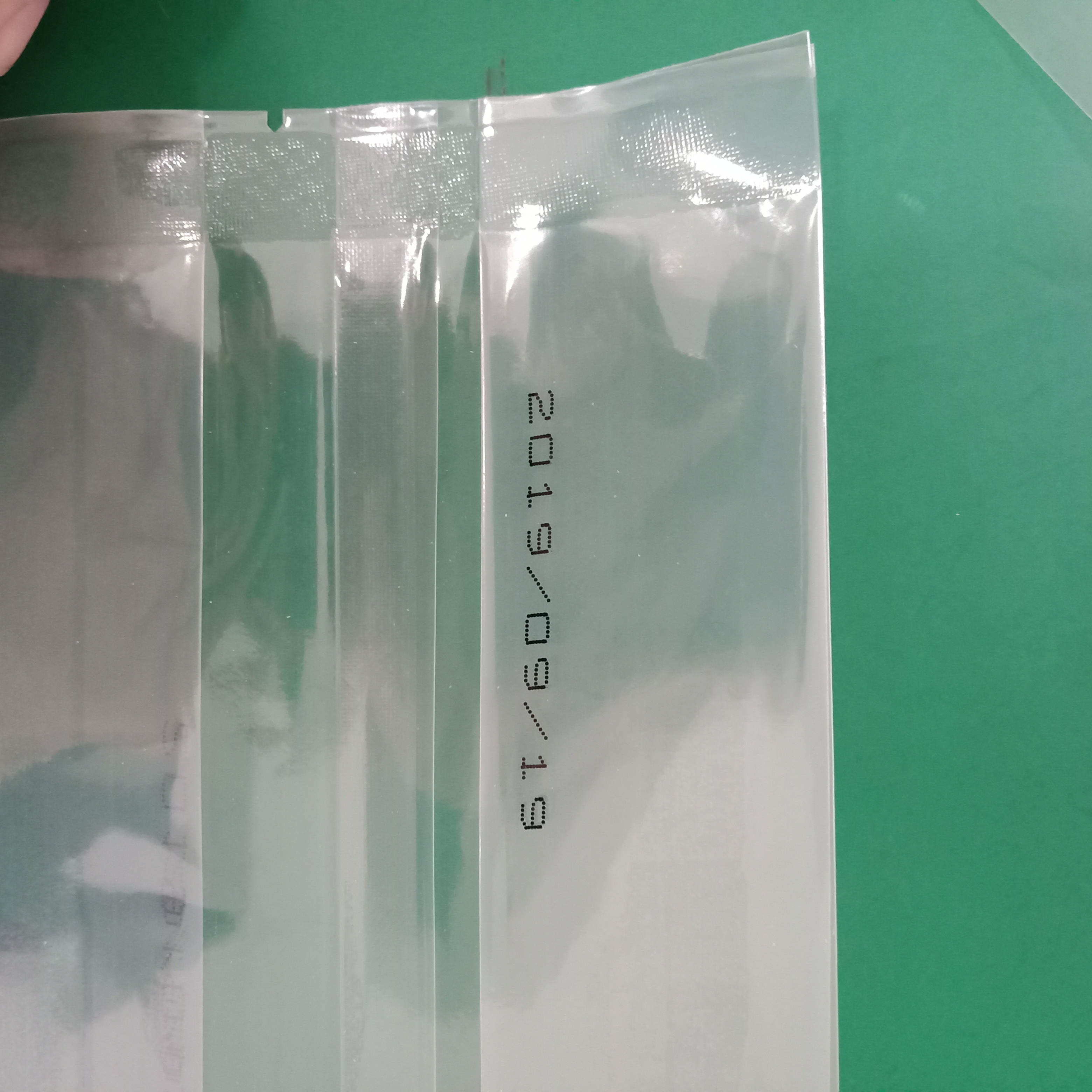

Date & Time (expiration date) Print Function	AD year, Japanese era name, year/date, day of week, time (12/24 schedule),annual serial date, annual serial week number, early/middle/late part of month(variable term setting),AM/PM and the replace-character function(replaces year, month, day, time, minute and second with different characters in single-digit)
Numbering function	Max 8 digits, optional default value setting, up/down, carry(1 count can be set ranging from 1 to 9999 works),zero suppression function(replaces zeros in higher digits with spaces),numbering replace-character function(replaces with characters other than figures)
Bar code printing function	ITF, NW7, JAN, Code39/Code128
Communications Function	RS-232C 1CH maximum 115,200bps, Ethernet
Head cable	3.5m
Nozzle bore size	50μm, 60μm

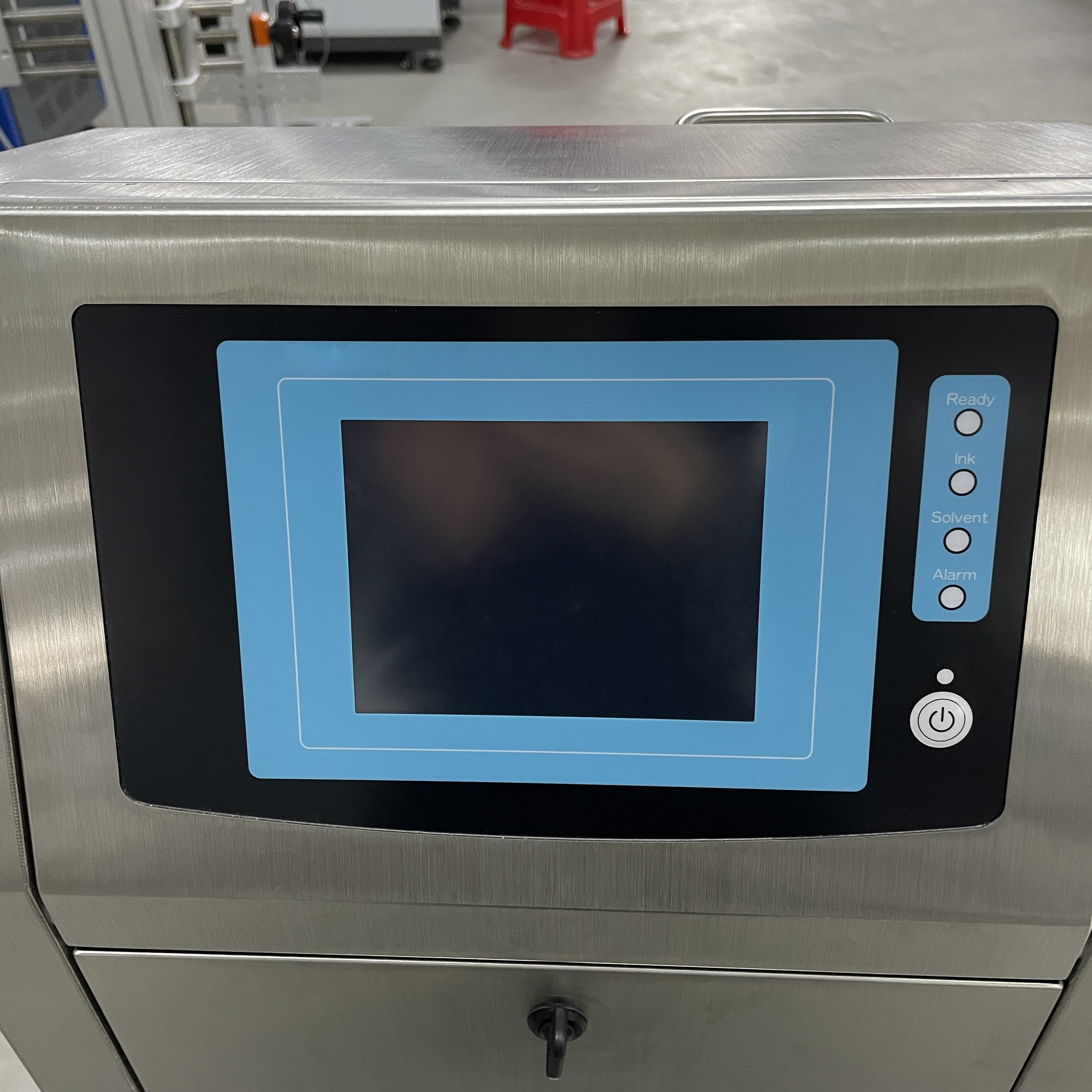

Date input	Touch panel, RS-232C communication
User interface	Chinese, English ※ Please note that there may be some languages not applicable on their fonts installed.

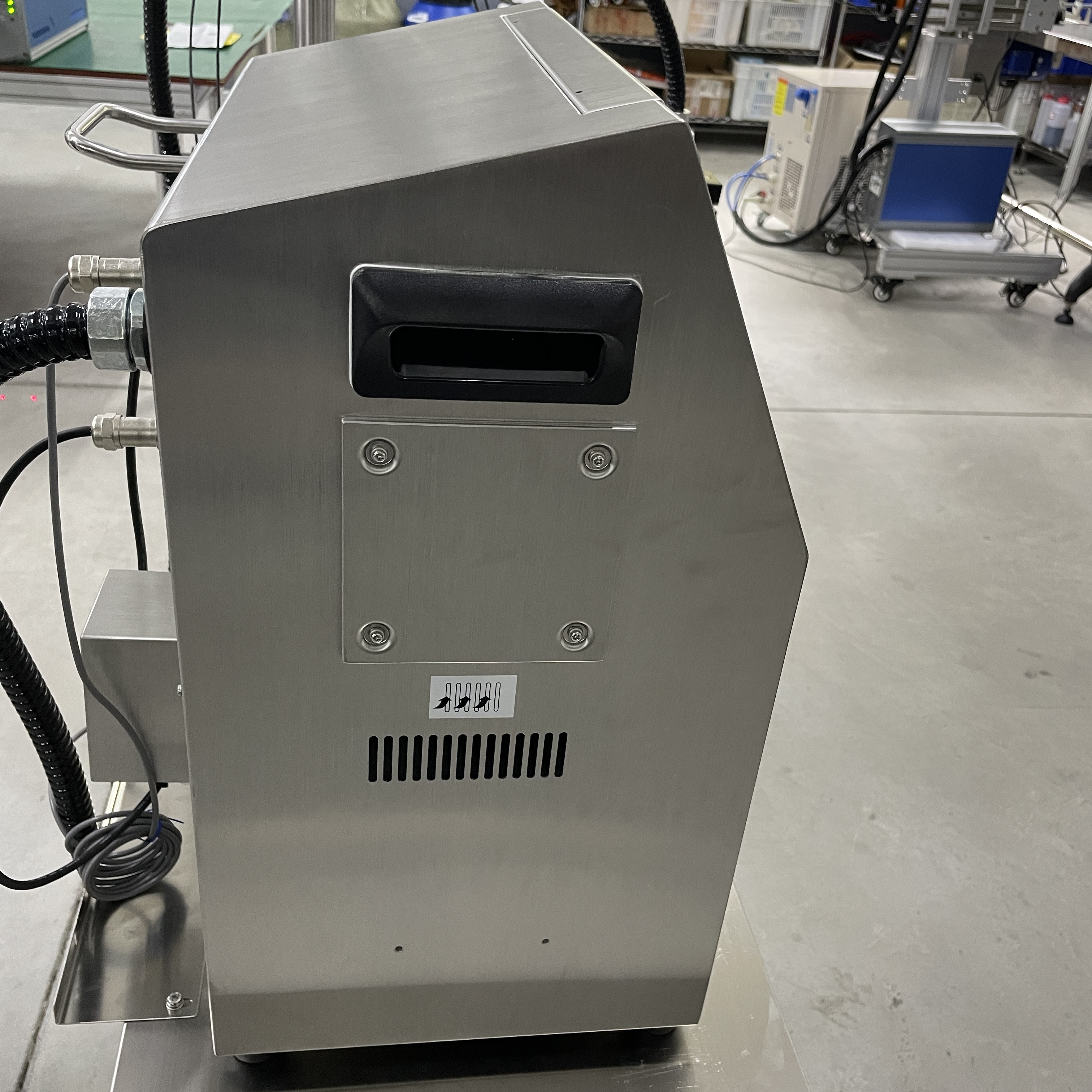

Dimension (width x depth x height)	Main body: 280W×400D×532H; Print head: 40W×199D×404H;
Operating environment	Temperature:0℃-40℃，Humidity: 10-80%RH (non-condensing )
Power supply	AC220V 50/60HZ 70W（100VA）
Ground	Type D ground
Net weight	30kgs
